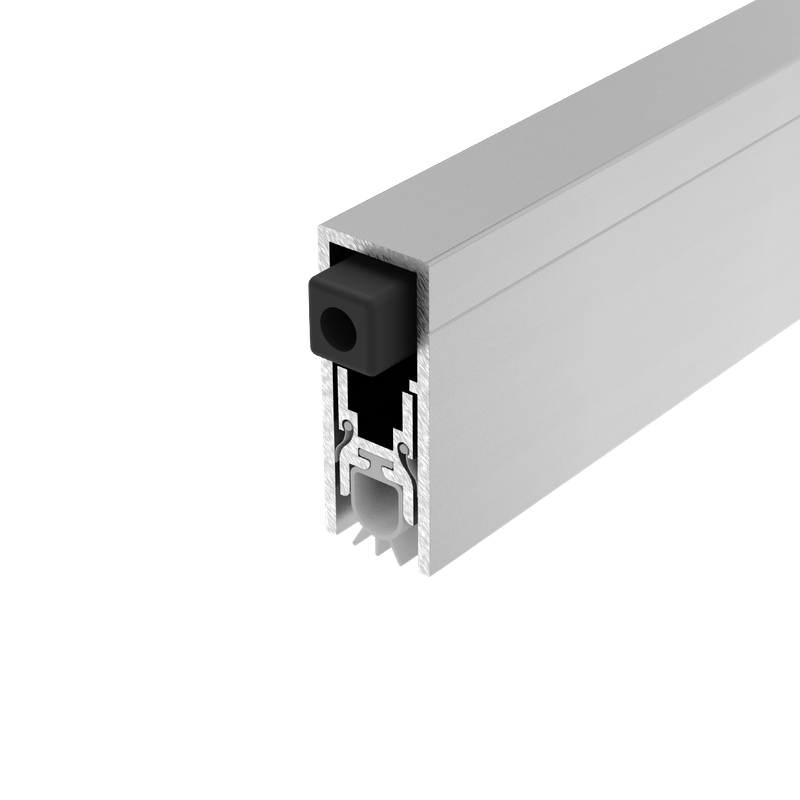

F8000 IS8010si Medium Duty Automatic Door Bottom Seal SCA
Stock Code:
F8001SCA
Stock Code:
F8003SCA
Stock Code:
F8005SCA
Stock Code:
F8006SCA
Stock Code:
F8009SCA
Stock Code:
F8011SCA
- Quick Ship
- Fire Rated AS1530.4
- Australian Made
- Quick Ship
- Fire Rated AS1530.4
- Australian Made
- Quick Ship
- Fire Rated AS1530.4
- Australian Made
- Quick Ship
- Fire Rated AS1530.4
- Australian Made
- Quick Ship
- Fire Rated AS1530.4
- Australian Made
- Quick Ship
- Fire Rated AS1530.4
- Australian Made
Stock Level:
In Stock
Stock Level:
In Stock
Stock Level:
In Stock
Stock Level:
In Stock
Stock Level:
In Stock
Stock Level:
In Stock
380mm
600mm
820mm
920mm
1070mm
1220mm
Unavailable for Online Purchase
Unavailable for Online Purchase
Unavailable for Online Purchase
Unavailable for Online Purchase
Unavailable for Online Purchase
Unavailable for Online Purchase
- A medium duty, concealed automatic door bottom seal which is mortised into the bottom edge of single action doors. It operates automatically by a spring loaded mechanism which lifts the seal clear of the floor as soon as the door is opened.
- Medium temperature smoke leakage approvals to AS1530 Part 7, compliant with AS6905 on proprietary door assemblies
- Conforms with BCA Specification C3.4 smoke sealing requirements
- Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
- Durability tests demonstrating over 1,000,000 open and close cycles
Mounted into a 35mm deep x 15mm wide machined groove, the seal is screwfixed back into the door stiles via stainless steel end plates, holding the seal in place. The seal operates automatically by pressure against the door jamb on its adjustable strike button. The seal contains a high efficiency mechanism to assist with the closing force requirements detailed in AS1428/1 (Design for Access and Mobility).
Gap Size: Min 3mm/ Max 15mm
- A medium duty, concealed automatic door bottom seal which is mortised into the bottom edge of single action doors. It operates automatically by a spring loaded mechanism which lifts the seal clear of the floor as soon as the door is opened.
- Medium temperature smoke leakage approvals to AS1530 Part 7, compliant with AS6905 on proprietary door assemblies
- Conforms with BCA Specification C3.4 smoke sealing requirements
- Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
- Durability tests demonstrating over 1,000,000 open and close cycles
Mounted into a 35mm deep x 15mm wide machined groove, the seal is screwfixed back into the door stiles via stainless steel end plates, holding the seal in place. The seal operates automatically by pressure against the door jamb on its adjustable strike button. The seal contains a high efficiency mechanism to assist with the closing force requirements detailed in AS1428/1 (Design for Access and Mobility).
Gap Size: Min 3mm/ Max 15mm
- A medium duty, concealed automatic door bottom seal which is mortised into the bottom edge of single action doors. It operates automatically by a spring loaded mechanism which lifts the seal clear of the floor as soon as the door is opened.
- Medium temperature smoke leakage approvals to AS1530 Part 7, compliant with AS6905 on proprietary door assemblies
- Conforms with BCA Specification C3.4 smoke sealing requirements
- Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
- Durability tests demonstrating over 1,000,000 open and close cycles
Mounted into a 35mm deep x 15mm wide machined groove, the seal is screwfixed back into the door stiles via stainless steel end plates, holding the seal in place. The seal operates automatically by pressure against the door jamb on its adjustable strike button. The seal contains a high efficiency mechanism to assist with the closing force requirements detailed in AS1428/1 (Design for Access and Mobility).
Gap Size: Min 3mm/ Max 15mm
- A medium duty, concealed automatic door bottom seal which is mortised into the bottom edge of single action doors. It operates automatically by a spring loaded mechanism which lifts the seal clear of the floor as soon as the door is opened.
- Medium temperature smoke leakage approvals to AS1530 Part 7, compliant with AS6905 on proprietary door assemblies
- Conforms with BCA Specification C3.4 smoke sealing requirements
- Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
- Durability tests demonstrating over 1,000,000 open and close cycles
Mounted into a 35mm deep x 15mm wide machined groove, the seal is screwfixed back into the door stiles via stainless steel end plates, holding the seal in place. The seal operates automatically by pressure against the door jamb on its adjustable strike button. The seal contains a high efficiency mechanism to assist with the closing force requirements detailed in AS1428/1 (Design for Access and Mobility).
Gap Size: Min 3mm/ Max 15mm
- A medium duty, concealed automatic door bottom seal which is mortised into the bottom edge of single action doors. It operates automatically by a spring loaded mechanism which lifts the seal clear of the floor as soon as the door is opened.
- Medium temperature smoke leakage approvals to AS1530 Part 7, compliant with AS6905 on proprietary door assemblies
- Conforms with BCA Specification C3.4 smoke sealing requirements
- Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
- Durability tests demonstrating over 1,000,000 open and close cycles
Mounted into a 35mm deep x 15mm wide machined groove, the seal is screwfixed back into the door stiles via stainless steel end plates, holding the seal in place. The seal operates automatically by pressure against the door jamb on its adjustable strike button. The seal contains a high efficiency mechanism to assist with the closing force requirements detailed in AS1428/1 (Design for Access and Mobility).
Gap Size: Min 3mm/ Max 15mm
- A medium duty, concealed automatic door bottom seal which is mortised into the bottom edge of single action doors. It operates automatically by a spring loaded mechanism which lifts the seal clear of the floor as soon as the door is opened.
- Medium temperature smoke leakage approvals to AS1530 Part 7, compliant with AS6905 on proprietary door assemblies
- Conforms with BCA Specification C3.4 smoke sealing requirements
- Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
- Durability tests demonstrating over 1,000,000 open and close cycles
Mounted into a 35mm deep x 15mm wide machined groove, the seal is screwfixed back into the door stiles via stainless steel end plates, holding the seal in place. The seal operates automatically by pressure against the door jamb on its adjustable strike button. The seal contains a high efficiency mechanism to assist with the closing force requirements detailed in AS1428/1 (Design for Access and Mobility).
Gap Size: Min 3mm/ Max 15mm
| Dimensions | 380mm (cuts to 275mm) |
| Section | 35x14mm |
| Length | 380mm |
| Finish | SSS end plates & grey silicone gasket |
| Fire Rated | Fire tested to AS1530 Part 4 |
| Acoustics | Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2 |
| BCA Specification | Conforms with BCA Specification C3.4 smoke sealing requirements |
| Durability | Durability tests demonstrating over 1,000,000 open and close cycles |
| Gap Size | Min. 3mm / max. 15mm |
| Smoke Leakage | Medium temperature smoke leakage tests to AS1530 Part 7 available on proprietary door assemblies |
| Warranty | 10 Years |
| Dimensions | 600mm (cuts to 380mm) |
| Section | 35x14mm |
| Length | 600mm |
| Finish | SSS end plates & grey silicone gasket |
| Fire Rated | Fire tested to AS1530 Part 4 |
| Acoustics | Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2 |
| BCA Specification | Conforms with BCA Specification C3.4 smoke sealing requirements |
| Durability | Durability tests demonstrating over 1,000,000 open and close cycles |
| Gap Size | Min. 3mm / max. 15mm |
| Smoke Leakage | Medium temperature smoke leakage tests to AS1530 Part 7 available on proprietary door assemblies |
| Warranty | 10 Years |
| Dimensions | 820mm (cuts to 600mm) |
| Section | 35x14mm |
| Length | 820mm |
| Finish | SSS end plates & grey silicone gasket |
| Fire Rated | Fire tested to AS1530 Part 4 |
| Acoustics | Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2 |
| BCA Specification | Conforms with BCA Specification C3.4 smoke sealing requirements |
| Durability | Durability tests demonstrating over 1,000,000 open and close cycles |
| Gap Size | Min. 3mm / max. 15mm |
| Smoke Leakage | Medium temperature smoke leakage tests to AS1530 Part 7 available on proprietary door assemblies |
| Warranty | 10 Years |
| Dimensions | 920mm (cuts to 820mm) |
| Section | 35x14mm |
| Length | 920mm |
| Finish | SSS end plates & grey silicone gasket |
| Fire Rated | Fire tested to AS1530 Part 4 |
| Acoustics | Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2 |
| BCA Specification | Conforms with BCA Specification C3.4 smoke sealing requirements |
| Durability | Durability tests demonstrating over 1,000,000 open and close cycles |
| Gap Size | Min. 3mm / max. 15mm |
| Smoke Leakage | Medium temperature smoke leakage tests to AS1530 Part 7 available on proprietary door assemblies |
| Warranty | 10 Years |
| Dimensions | 1070mm (cuts to 920mm) |
| Section | 35x14mm |
| Length | 1070mm |
| Finish | SSS end plates & grey silicone gasket |
| Fire Rated | Fire tested to AS1530 Part 4 |
| Acoustics | Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2 |
| BCA Specification | Conforms with BCA Specification C3.4 smoke sealing requirements |
| Durability | Durability tests demonstrating over 1,000,000 open and close cycles |
| Gap Size | Min. 3mm / max. 15mm |
| Smoke Leakage | Medium temperature smoke leakage tests to AS1530 Part 7 available on proprietary door assemblies |
| Warranty | 10 Years |
| Dimensions | 1220mm (uts to 1070mm) |
| Section | 35x14mm |
| Length | 1220mm |
| Finish | SSS end plates & grey silicone gasket |
| Fire Rated | Fire tested to AS1530 Part 4 |
| Acoustics | Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2 |
| BCA Specification | Conforms with BCA Specification C3.4 smoke sealing requirements |
| Durability | Durability tests demonstrating over 1,000,000 open and close cycles |
| Gap Size | Min. 3mm / max. 15mm |
| Smoke Leakage | Medium temperature smoke leakage tests to AS1530 Part 7 available on proprietary door assemblies |
| Warranty | 10 Years |
Downloads
Downloads
Downloads
Downloads
Downloads
Downloads
CUSTOMISATION STARTS HERE
Transform your vision into reality with our custom design service - perfectly curate and elevate any project with our wide range of customisation services.
