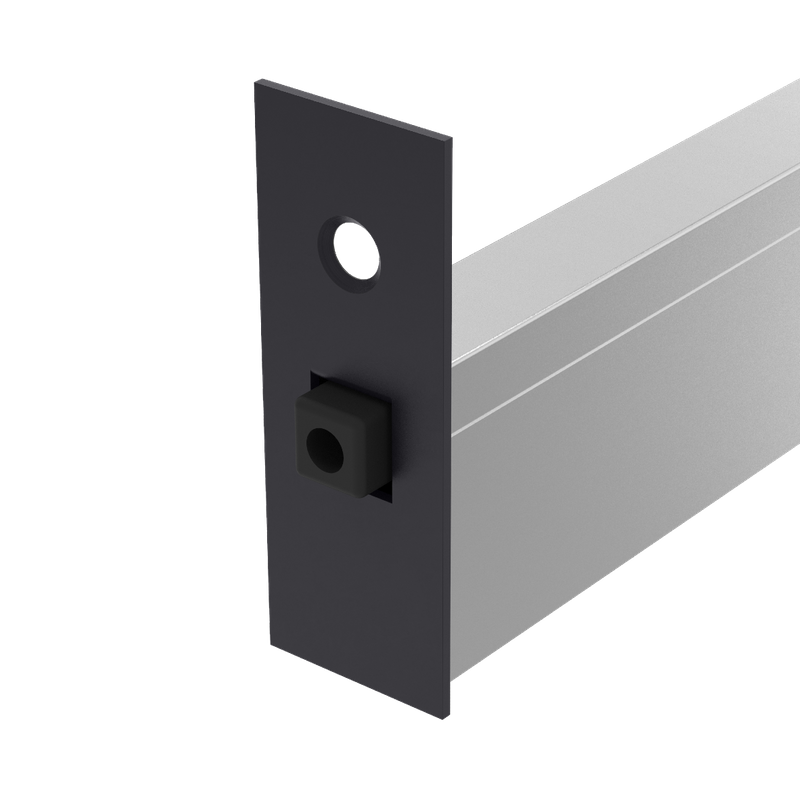

F8000 IS8010si Medium Duty Automatic Door Bottom Seal BLK
Stock Code:
F8003BLK
Stock Code:
F8005BLK
Stock Code:
F8006BLK
Stock Code:
F8009BLK
Stock Code:
F8011BLK
- Quick Ship
- Fire Rated AS1530.4
- Australian Made
- Quick Ship
- Fire Rated AS1530.4
- Australian Made
- Quick Ship
- Fire Rated AS1530.4
- Australian Made
- Quick Ship
- Fire Rated AS1530.4
- Australian Made
- Quick Ship
- Fire Rated AS1530.4
- Australian Made
Price:
$71.29
Price:
$104.60
Price:
$89.17
Price:
$121.47
Price:
$119.91
Stock Level:
In Stock
Stock Level:
In Stock
Stock Level:
In Stock
Stock Level:
In Stock
Stock Level:
In Stock
600mm
820mm
920mm
1070mm
1220mm
| Dimensions | 600mm (cuts to 380mm) |
| Section | 35x14mm |
| Length | 600mm |
| Finish | Black end plates & black silicone gasket |
| Fire Rated | Fire tested to AS1530 Part 4 |
| Acoustics | Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2 |
| BCA Specification | Conforms with BCA Specification C3.4 smoke sealing requirements |
| Durability | Durability tests demonstrating over 1,000,000 open and close cycles |
| Gap Size | Min. 3mm / max. 15mm |
| Smoke Leakage | Medium temperature smoke leakage tests to AS1530 Part 7 available on proprietary door assemblies |
| Warranty | 10 Years |
| Dimensions | 820mm (cuts to 600mm) |
| Diameter | 35x14mm |
| Length | 820mm |
| Finish | Black end plates & black silicone gasket |
| Fire Rated | Fire tested to AS1530 Part 4 |
| Acoustics | Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2 |
| BCA Specification | Conforms with BCA Specification C3.4 smoke sealing requirements |
| Durability | Durability tests demonstrating over 1,000,000 open and close cycles |
| Gap Size | Min. 3mm / max. 15mm |
| Smoke Leakage | Medium temperature smoke leakage tests to AS1530 Part 7 available on proprietary door assemblies |
| Warranty | 10 Years |
| Dimensions | 920mm (cuts to 820mm) |
| Section | 35x14mm |
| Length | 920mm |
| Finish | Black end plates & black silicone gasket |
| Fire Rated | Fire tested to AS1530 Part 4 |
| Acoustics | Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2 |
| BCA Specification | Conforms with BCA Specification C3.4 smoke sealing requirements |
| Durability | Durability tests demonstrating over 1,000,000 open and close cycles |
| Gap Size | Min. 3mm / max. 15mm |
| Smoke Leakage | Medium temperature smoke leakage tests to AS1530 Part 7 available on proprietary door assemblies |
| Warranty | 10 Years |
| Dimensions | 1070mm (cuts to 920mm) |
| Section | 35x14mm |
| Length | 1070mm |
| Finish | Black end plates & black silicone gasket |
| Fire Rated | Fire tested to AS1530 Part 4 |
| Acoustics | Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2 |
| BCA Specification | Conforms with BCA Specification C3.4 smoke sealing requirements |
| Durability | Durability tests demonstrating over 1,000,000 open and close cycles |
| Gap Size | Min. 3mm / max. 15mm |
| Smoke Leakage | Medium temperature smoke leakage tests to AS1530 Part 7 available on proprietary door assemblies |
| Warranty | 10 Years |
| Dimensions | 1220mm (uts to 1070mm) |
| Section | 35x14mm |
| Length | 1220mm |
| Finish | Black end plates & black silicone gasket |
| Fire Rated | Fire tested to AS1530 Part 4 |
| Acoustics | Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2 |
| BCA Specification | Conforms with BCA Specification C3.4 smoke sealing requirements |
| Durability | Durability tests demonstrating over 1,000,000 open and close cycles |
| Gap Size | Min. 3mm / max. 15mm |
| Smoke Leakage | Medium temperature smoke leakage tests to AS1530 Part 7 available on proprietary door assemblies |
| Warranty | 10 Years |
