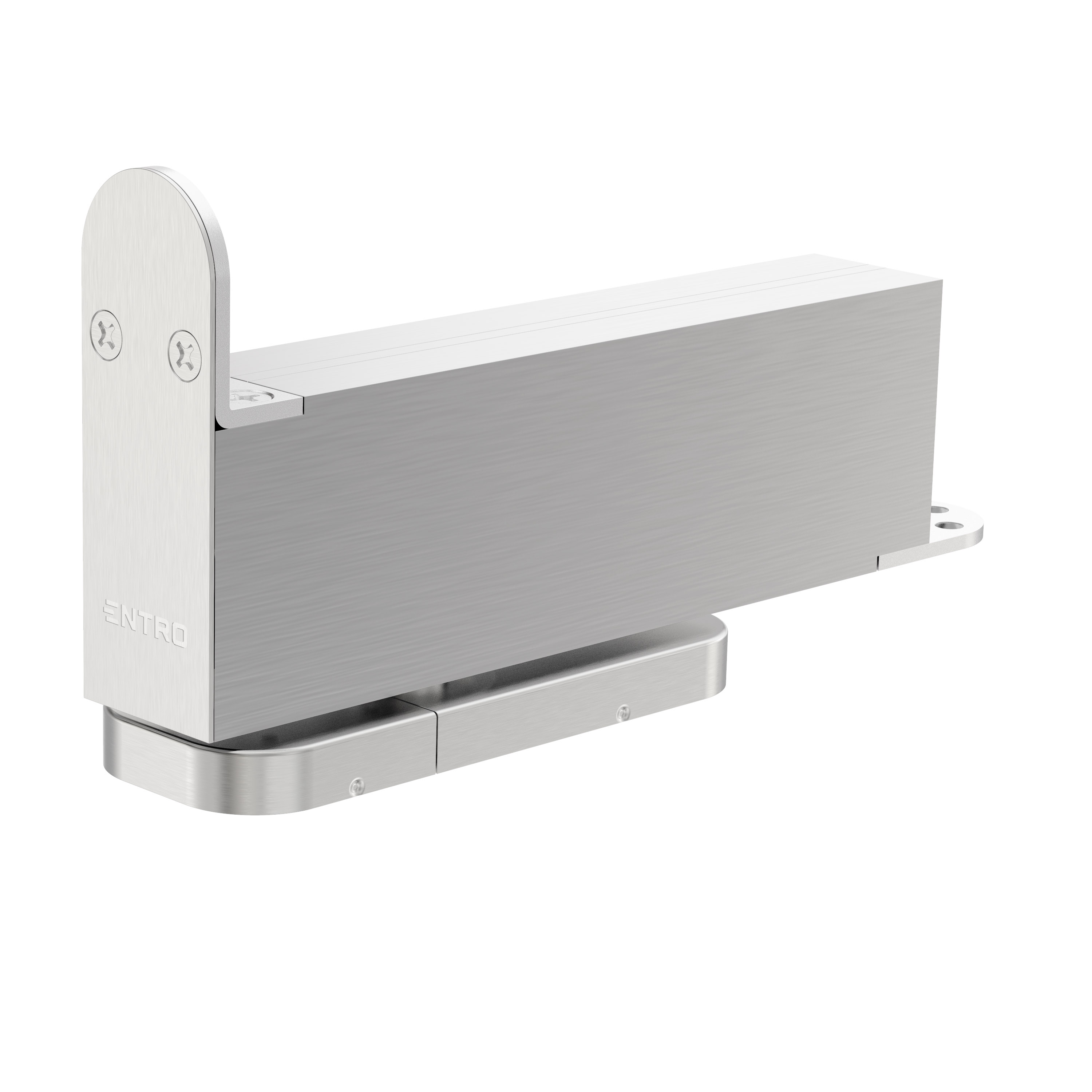

D5003 Concealed Hydraulic Pivot Closer Size 3 Non Hold Open SSS
D5003SSS
- Quick Ship
- 25 Year Warranty
Stock Level:
In Stock
| Dimensions | 440x75mm |
| Door Thickness | Min 40mm |
| Finish | SSS |
| Door Width | Max 1000mm |
| Installation | Concealed in bottom rail |
| Opening Angle | Max 150° (90° hold open D5093). Suitable for double action doors |
| Speed Control | Closing Speed (150°-15°), Latching Speed (15°-0°) |
| Warranty | 25 Year Warranty |
| Additional Contents | Top rail Pivot, Fixing Screws |
